DeepLDA: Alanine dipeptide and aldol reaction¶
Reference paper: Bonati, Rizzi and Parrinello, JCPL (2020) [arXiv].
Prerequisite: DeepLDA tutorial.
Setup¶
[1]:
# Colab setup
import os
if os.getenv("COLAB_RELEASE_TAG"):
import subprocess
subprocess.run('wget https://raw.githubusercontent.com/luigibonati/mlcolvar/main/colab_setup.sh', shell=True)
cmd = subprocess.run('bash colab_setup.sh EXAMPLE', shell=True, stdout=subprocess.PIPE)
print(cmd.stdout.decode('utf-8'))
# IMPORT PACKAGES
import torch
import lightning
import numpy as np
import matplotlib.pyplot as plt
# Set seed for reproducibility
torch.manual_seed(41)
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
from .autonotebook import tqdm as notebook_tqdm
[1]:
<torch._C.Generator at 0x7f5ae82043b0>

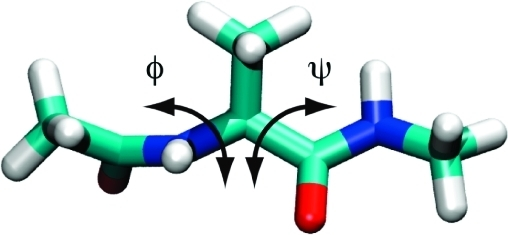

Alanine dipeptide¶
We first train a DeepLDA CV on the alanine dipeptide data, which is one of the examples of the DeepLDA paper. This is a small molecule often used as a benchmark for enhanced sampling, as it has two metastable states which are well described by the Ramachandran angles \(\phi\) and \(\psi\). To build a general mode, we will not use this information and just use as input features the 45 distances between heavy atoms.
Load data¶
We use the alanine dipeptide simulation data from the PLUMED-MASTERCLASS repository.
[2]:
from mlcolvar.io import create_dataset_from_files
from mlcolvar.data import DictModule
filenames = [ "https://raw.githubusercontent.com/luigibonati/masterclass-plumed/main/1_DeepLDA/0_unbiased-sA/COLVAR",
"https://raw.githubusercontent.com/luigibonati/masterclass-plumed/main/1_DeepLDA/0_unbiased-sB/COLVAR" ]
n_states = len(filenames)
# load dataset
dataset, df = create_dataset_from_files(filenames,
filter_args={'regex':'d_' }, # select distances between heavy atoms
create_labels=True,
return_dataframe=True,
)
datamodule = DictModule(dataset,lengths=[0.8,0.2])
Class 0 dataframe shape: (5001, 53)
Class 1 dataframe shape: (5001, 53)
- Loaded dataframe (10002, 53): ['time', 'phi', 'psi', 'theta', 'xi', 'ene', 'd_2_5', 'd_2_6', 'd_2_7', 'd_2_9', 'd_2_11', 'd_2_15', 'd_2_16', 'd_2_17', 'd_2_19', 'd_5_6', 'd_5_7', 'd_5_9', 'd_5_11', 'd_5_15', 'd_5_16', 'd_5_17', 'd_5_19', 'd_6_7', 'd_6_9', 'd_6_11', 'd_6_15', 'd_6_16', 'd_6_17', 'd_6_19', 'd_7_9', 'd_7_11', 'd_7_15', 'd_7_16', 'd_7_17', 'd_7_19', 'd_9_11', 'd_9_15', 'd_9_16', 'd_9_17', 'd_9_19', 'd_11_15', 'd_11_16', 'd_11_17', 'd_11_19', 'd_15_16', 'd_15_17', 'd_15_19', 'd_16_17', 'd_16_19', 'd_17_19', 'walker', 'labels']
- Descriptors (10002, 45): ['d_2_5', 'd_2_6', 'd_2_7', 'd_2_9', 'd_2_11', 'd_2_15', 'd_2_16', 'd_2_17', 'd_2_19', 'd_5_6', 'd_5_7', 'd_5_9', 'd_5_11', 'd_5_15', 'd_5_16', 'd_5_17', 'd_5_19', 'd_6_7', 'd_6_9', 'd_6_11', 'd_6_15', 'd_6_16', 'd_6_17', 'd_6_19', 'd_7_9', 'd_7_11', 'd_7_15', 'd_7_16', 'd_7_17', 'd_7_19', 'd_9_11', 'd_9_15', 'd_9_16', 'd_9_17', 'd_9_19', 'd_11_15', 'd_11_16', 'd_11_17', 'd_11_19', 'd_15_16', 'd_15_17', 'd_15_19', 'd_16_17', 'd_16_19', 'd_17_19']

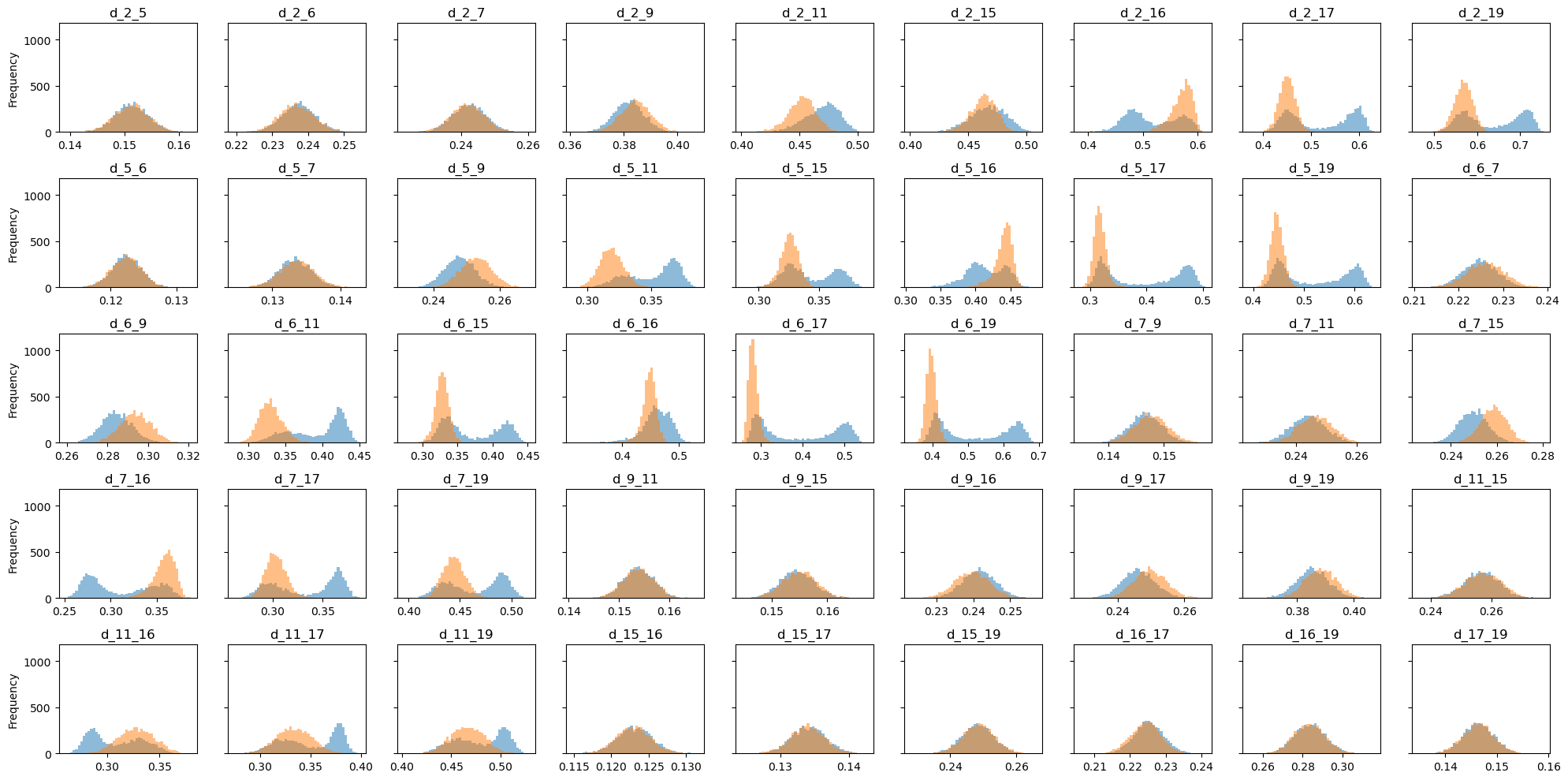

We can inspect the distances through their histograms, from which we notice that no one is able to discriminate between the states.
[3]:
descriptors_names = df.filter(regex='d_').columns.values
fig,axs = plt.subplots(5,9,figsize=(20,10),sharey=True)
for ax,desc in zip(axs.flatten(),descriptors_names):
df.pivot(columns='labels')[desc].plot.hist(bins=50,alpha=0.5,ax=ax,legend=False)
ax.set_title(desc)
plt.tight_layout()
Train DeepLDA¶
Define CV
[4]:
from mlcolvar.cvs import DeepLDA
n_input = dataset['data'].shape[-1]
nodes = [n_input,30,30,2]
# MODEL
model = DeepLDA(nodes, n_states=n_states)
model
[4]:
DeepLDA(
(loss_fn): ReduceEigenvaluesLoss()
(norm_in): Normalization(in_features=45, out_features=45, mode=mean_std)
(nn): FeedForward(
(nn): Sequential(
(0): Linear(in_features=45, out_features=30, bias=True)
(1): ReLU(inplace=True)
(2): Linear(in_features=30, out_features=30, bias=True)
(3): ReLU(inplace=True)
(4): Linear(in_features=30, out_features=2, bias=True)
)
)
(lda): LDA(in_features=2, out_features=1)
)
Define trainer and fit
[5]:
from lightning.pytorch.callbacks.early_stopping import EarlyStopping
from mlcolvar.utils.trainer import MetricsCallback
# define callbacks
metrics = MetricsCallback()
early_stopping = EarlyStopping(monitor="valid_loss", min_delta=0.1, patience=50)
# define trainer
trainer = lightning.Trainer(callbacks=[metrics, early_stopping],
max_epochs=None, logger=None, enable_checkpointing=False)
# fit
trainer.fit( model, datamodule )
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/lightning/pytorch/trainer/connectors/logger_connector/logger_connector.py:67: UserWarning: Starting from v1.9.0, `tensorboardX` has been removed as a dependency of the `lightning.pytorch` package, due to potential conflicts with other packages in the ML ecosystem. For this reason, `logger=True` will use `CSVLogger` as the default logger, unless the `tensorboard` or `tensorboardX` packages are found. Please `pip install lightning[extra]` or one of them to enable TensorBoard support by default
warning_cache.warn(
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/lightning/pytorch/loops/utilities.py:70: PossibleUserWarning: `max_epochs` was not set. Setting it to 1000 epochs. To train without an epoch limit, set `max_epochs=-1`.
rank_zero_warn(
You are using a CUDA device ('NVIDIA GeForce RTX 3090') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params | In sizes | Out sizes
-------------------------------------------------------------------------
0 | loss_fn | ReduceEigenvaluesLoss | 0 | ? | ?
1 | norm_in | Normalization | 0 | [45] | [45]
2 | nn | FeedForward | 2.4 K | [45] | [2]
3 | lda | LDA | 0 | [2] | [1]
-------------------------------------------------------------------------
2.4 K Trainable params
0 Non-trainable params
2.4 K Total params
0.009 Total estimated model params size (MB)
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/lightning/pytorch/loops/fit_loop.py:280: PossibleUserWarning: The number of training batches (1) is smaller than the logging interval Trainer(log_every_n_steps=50). Set a lower value for log_every_n_steps if you want to see logs for the training epoch.
rank_zero_warn(
Epoch 305: 100%|██████████| 1/1 [00:00<00:00, 17.84it/s, v_num=72]

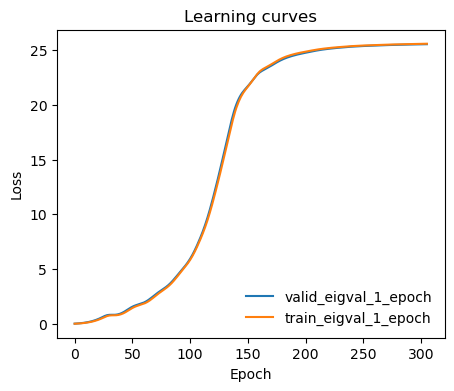

[6]:
from mlcolvar.utils.plot import plot_metrics
ax = plot_metrics(metrics.metrics,
keys=[x for x in metrics.metrics.keys() if 'eigval' in x and 'epoch' in x],#['train_loss_epoch','valid_loss'],
yscale='linear')
Analysis of the CV¶
[7]:
# evaluate cv on training set and append to dataframe
X = dataset[:]['data']
model.eval()
with torch.no_grad():
s = model(torch.Tensor(X)).numpy()
n_components = n_states-1
for i in range(n_components):
df[f'CV{i}'] = s[:,i]
As in the previous example, we can evaluate the histogram of the CV on the training set, from which we see how the two states are now discriminated.
[8]:
fig,axs = plt.subplots(1,n_components,figsize=(5*n_components,4))
if n_components == 1:
axs = [axs]
for i,ax in enumerate(axs):
ax.hist(s[:,i],bins=100)
ax.set_xlabel(f'CV {i}')
ax.set_ylabel('Histogram')

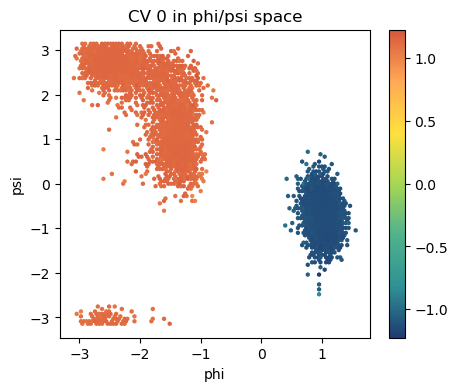

Moreover, we can also visualize the CVs values on a physical space, e.g. in the Ramachandran plot (\(\phi\) and \(\psi\) space).
[9]:
n_components = n_states-1
fig,axs = plt.subplots(1,n_components,figsize=(5*n_components,4))
if n_components == 1:
axs = [axs]
for i,ax in enumerate(axs):
df.plot.hexbin('phi','psi',C=f'CV{i}',cmap='fessa',ax=ax)
ax.set_title(f'CV {i} in phi/psi space')

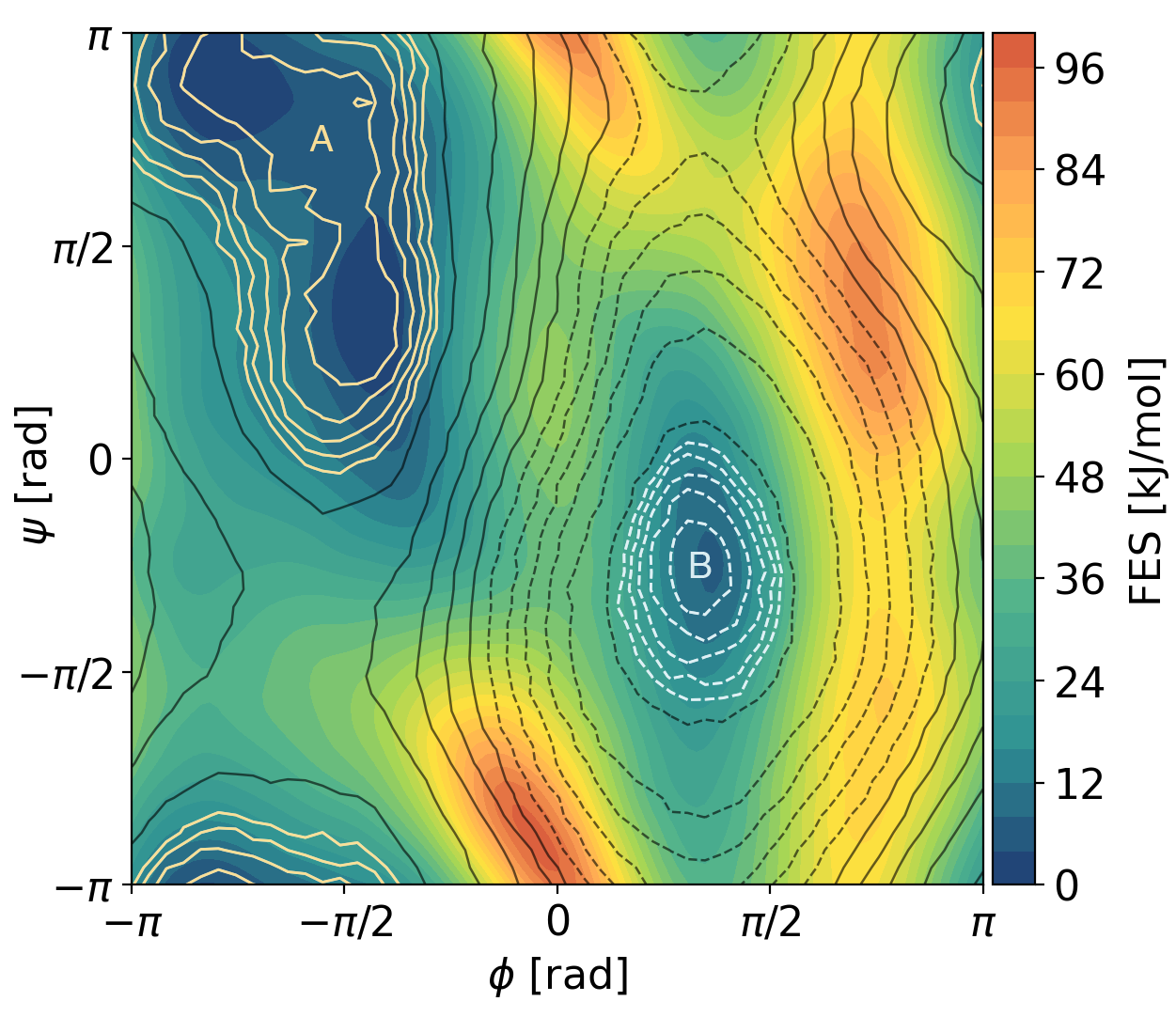

By performing an enhanced sampling simulation along the CV we can we can compute the free energy profile and compare the isolines in the whole Ramachandran plot, which show how the DeepLDA CV captures approximately the minimum free energy pathway connecting the two states.
Aldol reaction¶
In this second example we consider the second example reported in the paper, which is an intermolecular aldol reaction between vinyl alcohol and formaldehyde.
We download the data from the DeepLDA repository associated to the PLUMED-NEST submission, which contains unbiased simulations of the reactants and products.
|01cb397070674f6dbee6b813ce0c0796||11c10bc8e4da4f7389ce97d17b3718e0|
Load data¶
[10]:
# Set seed for reproducibility
torch.manual_seed(1)
from mlcolvar.io import create_dataset_from_files
from mlcolvar.data import DictModule
filenames = [ "https://raw.githubusercontent.com/luigibonati/data-driven-CVs/master/aldol/1_unbiased/INPUTS.R",
"https://raw.githubusercontent.com/luigibonati/data-driven-CVs/master/aldol/1_unbiased/INPUTS.P" ]
n_states = len(filenames)
# load dataset
dataset, df = create_dataset_from_files(filenames,
filter_args={'regex':'cc|oo|co|ch|oh' }, # select contacts
create_labels=True,
return_dataframe=True,
)
datamodule = DictModule(dataset,lengths=[0.8,0.2])
Class 0 dataframe shape: (5001, 43)
Class 1 dataframe shape: (5001, 43)
- Loaded dataframe (10002, 43): ['time', 'cc2.0', 'cc2.1', 'cc2.2', 'oo2.0', 'co2.0', 'co2.1', 'co2.2', 'co2.3', 'co2.4', 'co2.5', 'ch2.0', 'ch2.1', 'ch2.2', 'ch2.3', 'ch2.4', 'ch2.5', 'ch2.6', 'ch2.7', 'ch2.8', 'ch2.9', 'ch2.10', 'ch2.11', 'ch2.12', 'ch2.13', 'ch2.14', 'ch2.15', 'ch2.16', 'ch2.17', 'oh2.0', 'oh2.1', 'oh2.2', 'oh2.3', 'oh2.4', 'oh2.5', 'oh2.6', 'oh2.7', 'oh2.8', 'oh2.9', 'oh2.10', 'oh2.11', 'walker', 'labels']
- Descriptors (10002, 40): ['cc2.0', 'cc2.1', 'cc2.2', 'oo2.0', 'co2.0', 'co2.1', 'co2.2', 'co2.3', 'co2.4', 'co2.5', 'ch2.0', 'ch2.1', 'ch2.2', 'ch2.3', 'ch2.4', 'ch2.5', 'ch2.6', 'ch2.7', 'ch2.8', 'ch2.9', 'ch2.10', 'ch2.11', 'ch2.12', 'ch2.13', 'ch2.14', 'ch2.15', 'ch2.16', 'ch2.17', 'oh2.0', 'oh2.1', 'oh2.2', 'oh2.3', 'oh2.4', 'oh2.5', 'oh2.6', 'oh2.7', 'oh2.8', 'oh2.9', 'oh2.10', 'oh2.11']
Train DeepLDA CV¶
[11]:
from mlcolvar.cvs import DeepLDA
n_input = dataset['data'].shape[-1]
nodes = [n_input,30,30,5]
nn_args = {'activation': 'shifted_softplus'}
options = {'nn': nn_args}
# MODEL
model = DeepLDA(nodes, n_states=n_states, options=options)
model
[11]:
DeepLDA(
(loss_fn): ReduceEigenvaluesLoss()
(norm_in): Normalization(in_features=40, out_features=40, mode=mean_std)
(nn): FeedForward(
(nn): Sequential(
(0): Linear(in_features=40, out_features=30, bias=True)
(1): Shifted_Softplus(beta=1, threshold=20)
(2): Linear(in_features=30, out_features=30, bias=True)
(3): Shifted_Softplus(beta=1, threshold=20)
(4): Linear(in_features=30, out_features=5, bias=True)
)
)
(lda): LDA(in_features=5, out_features=1)
)
[12]:
from lightning.pytorch.callbacks.early_stopping import EarlyStopping
from mlcolvar.utils.trainer import MetricsCallback
# define callbacks
metrics = MetricsCallback()
early_stopping = EarlyStopping(monitor="valid_loss", min_delta=0.1, patience=50)
# define trainer
trainer = lightning.Trainer(callbacks=[metrics, early_stopping],
max_epochs=None, logger=None, enable_checkpointing=False)
# fit
trainer.fit( model, datamodule )
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/lightning/pytorch/loops/utilities.py:70: PossibleUserWarning: `max_epochs` was not set. Setting it to 1000 epochs. To train without an epoch limit, set `max_epochs=-1`.
rank_zero_warn(
You are using a CUDA device ('NVIDIA GeForce RTX 3090') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params | In sizes | Out sizes
-------------------------------------------------------------------------
0 | loss_fn | ReduceEigenvaluesLoss | 0 | ? | ?
1 | norm_in | Normalization | 0 | [40] | [40]
2 | nn | FeedForward | 2.3 K | [40] | [5]
3 | lda | LDA | 0 | [5] | [1]
-------------------------------------------------------------------------
2.3 K Trainable params
0 Non-trainable params
2.3 K Total params
0.009 Total estimated model params size (MB)
/home/lbonati@iit.local/software/anaconda3/envs/pytorch/lib/python3.10/site-packages/lightning/pytorch/loops/fit_loop.py:280: PossibleUserWarning: The number of training batches (1) is smaller than the logging interval Trainer(log_every_n_steps=50). Set a lower value for log_every_n_steps if you want to see logs for the training epoch.
rank_zero_warn(
Epoch 566: 100%|██████████| 1/1 [00:00<00:00, 19.76it/s, v_num=73]

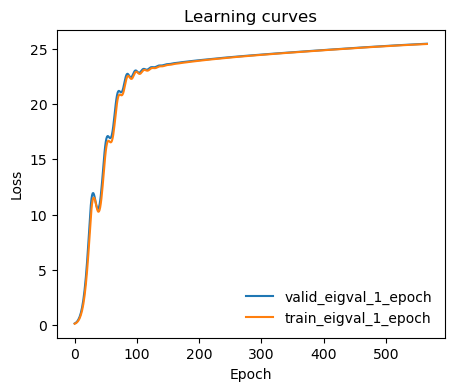

Monitor learning curves
[13]:
from mlcolvar.utils.plot import plot_metrics
ax = plot_metrics(metrics.metrics,
keys=[x for x in metrics.metrics.keys() if 'eigval' in x and 'epoch' in x],#['train_loss_epoch','valid_loss'],
yscale='linear')
Analysis of the CV¶
[14]:
# evaluate cv on training set and append to dataframe
X = dataset[:]['data']
model.eval()
with torch.no_grad():
s = model(torch.Tensor(X)).numpy()
n_components = n_states-1
for i in range(n_components):
df[f'CV{i}'] = s[:,i]

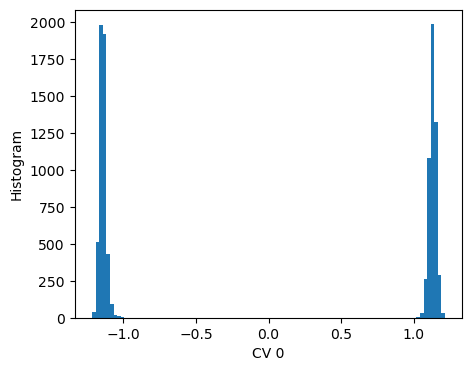

We can evaluate the histogram of the CV on the training set, from which we see how the two states are well discriminated.
[15]:
fig,axs = plt.subplots(1,n_components,figsize=(5*n_components,4))
if n_components == 1:
axs = [axs]
for i,ax in enumerate(axs):
ax.hist(s[:,i],bins=100)
ax.set_xlabel(f'CV {i}')
ax.set_ylabel('Histogram')
Features ranking¶

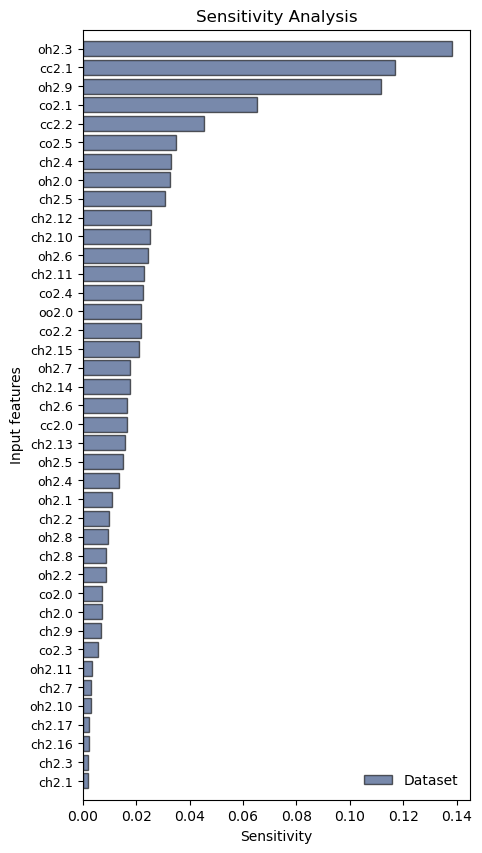

We can compute the feature importances by performing a sensitivity analysis, which amounts as measuring how sensitive is the CV \(s\) to changes in the input features \(x_i\), over a dataset \(\{\mathbf{x}^{(j)}\}_{j=1} ^N\):
\[s_i = \frac{1}{N} \sum_j \left|{\frac{\partial s}{\partial x_i}(\mathbf{x}^{(j)})}\right| \sigma_i\]
where \(\sigma_i\) is the standard deviation, which is needed if the dataset is not standardized.
[16]:
from mlcolvar.explain import sensitivity_analysis
results = sensitivity_analysis(model, dataset, feature_names=dataset.feature_names, per_class=False, plot_mode='barh')

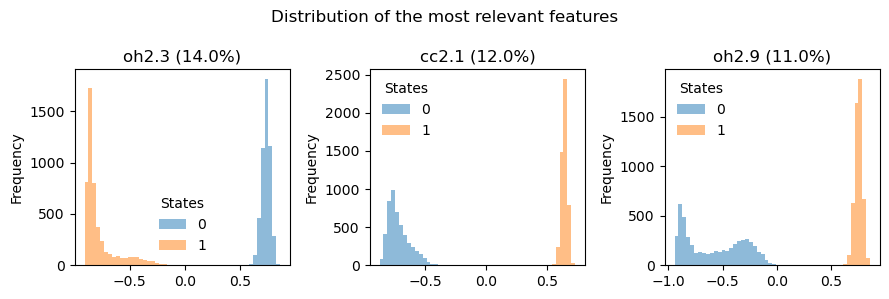

This allows us to identify three dominant features. Indeed, if we plot their distributions, we find that these features undergo significant changes when going from the reactant to the product states
[17]:
plot_n_features = 3
names = results['feature_names'][-plot_n_features:]
sensitivity = results['sensitivity']['Dataset'][-plot_n_features:]
fig, axs = plt.subplots(1,plot_n_features,figsize=(3*plot_n_features,3))
plt.suptitle('Distribution of the most relevant features')
for ax,name,sensitivity in zip(axs.flatten()[::-1],names,sensitivity):
df.pivot(columns='labels')[name].plot.hist(bins=50,alpha=0.5,ax=ax)
ax.set_title(f'{name} ({np.round(sensitivity*100)}%)')
ax.legend(title='States',frameon=False)
plt.tight_layout()
